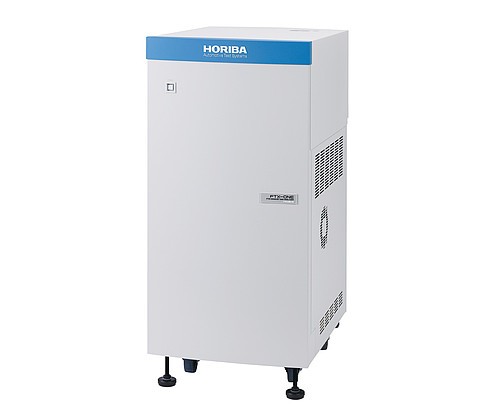

Spectrometru IR si transformanta Fourier-FTIR FTX-ONE

FTX-ONE is a fast response and compact size FTIR analyzer for the simultaneous measurement of multiple components of engine exhaust gases.



The FTX-ONE offers a 5Hz sampling rate and simultaneously measure the concentrations of multiple components including NH3, CH4, and CO2, from un-diluted exhaust gas using the Fourier Transform Infrared (FTIR) method in combination with multivariate analysis algorithm.


Producător: Horiba

Model: HORIBA

Cod: FTX-ONE

Preţ, fără TVA: La cerere

Distribuie

Telefon: 0744.594.794 / 0251.417.664

E-mail: tehnic@aparatura-laboratoare.ro

Low sample flow rate but fast response.

Whilst maintaining high accuracy by the use of a high performance compact gas cell.

Multi-point exhaust sampling and ideal for catalyst evaluation in combination with a simulated exhaust gas generator.

Approx. 50%*2 smaller footprint and reduced weight in comparison to a conventional laboratory FTIR.

More Flexibility in cell layout and easier access for maintenance.

At the Core of the Instrument - In-House Knowledge

The analyzer is the core of an emission measurement system and the key to accurate measurement.

HORIBA maintains excellent quality by manufacturing analyzers “in-house” and designs for operation & maintenance efficiency.

Model



CO

0-200ppm

0-1000ppm

0-5000ppm

0-2 vol%

0-10 vol%

CO2

0-1 vol%

0-5 vol%

0-20 vol%

NO

0-200ppm
0-1000ppm
0-5000ppm

NO2/ N2O/ SO2/ C2H6/ C3H6/1,3-C4H6/ iso-C4H8

0-200ppm

H2O

0-24 vol%

NH3

0-100ppm

0-1000ppm

HCHO*2/ CH4/ C2H4

0-500ppm

HCOOH

0-100ppm

Measurement target

exhaust gas from internal combustion engine (Direct measurement)

Target components and ranges

Max. 28 components*3

Standard component set : for gasoline / diesel vehicle (18 components and "NO+NO2")

Optional component set: for CNG-fueled vehicle (16 components and "NO+NO2") and for ethanol

Principle

Fourier Transform Infrared (FTIR)

Sampling line temperature

113 ± 6 °C or 191 ± 6 °C

Sampling gas flow rate

3.5 L/min

Operating environment

Ambient temperature: 5 to 40°C, Ambient humidity: less than 80% relative humidity (non condensing)

Power requirements *4

Approx. 2.8 kVA as MAX., Approx. 2.2 kVA at stable state

Dimensions

450 (W) X 700 (D) X 1000 (H) mm*5

Mass

Approx. 150 kg*5

Performance



Zero noise

0.5 to less than 2% of full scale (depending on measurement components)*6

Response (t10-90) time

1.5 seconds or less when switching from N2 to 200ppm CO

3 seconds or less when switching from N2 to 100ppm NH3*7

Repeatability *8 *9

Within ± 1.0% of full scale

Zero drift / Span drift *8 *9

Within ± 1.0% of full scale / 8 hours

Automatic replenishing device for liquid nitrogen

Max. storage amount: Approx. 12 L

Duration: 120 hours or more (depending on the vacuum degree of dewar)
