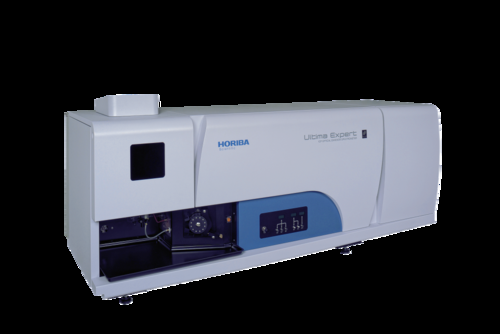

Spectrometru de emisie optica cu excitare de tip plasma cuplata inductive ICP-OES

Ultima Expert is driven by the powerful Analyst software featuring a large variety  of analytical functionalities for tailored control and analysis.
The robustness of the Ultima Expert makes it ideal for applications common to mining, chemicals manufacture, salt production, wear metals in oil analysis, petrochemical, metallurgical production and precious metal refining.
Gain in efficiency with the Ultima Expert for your most demanding needs!


Producător: Horiba

Model: Ultima Expert LT

Cod: Ultima Expert

Preţ, fără TVA: La cerere

Distribuie

Telefon: 0744.594.794 / 0251.417.664

E-mail: tehnic@aparatura-laboratoare.ro

Overview

High performance affordable ICP-OES spectrometer

The Ultima Expert LT offers high performance at an affordable price. It can handle challenging applications due to its design.

Its high quality optical design which integrates a high density holographic grating and one meter focal length associated with the unique Total Plasma View feature offers high resolution along with high sensitivity.

Radial viewing and Total Plasma View providing lowest detection limits in ICP-OES spectrometry

Unique sheath gas feature for unrivaled stability on samples with High Total Dissolved Solids content, up to 30% dissolved solids

Continuous wavelength coverage from 120 to 800 nm with Far UV option for improved sensitivity for halogens analysis or alternative wavelengths

Unmatched spectral resolution minimizing interferences with <5 pm for wavelengths in the range 120-320 nm

S3-base viewer

S3-base viewer displays the entire proprietary S3-base, developed with real ICP spectra acquisitions and containing more than 50,000 wavelengths identified with full spectroscopic data, to help with identification of emission lines in unknown samples.

Full S3-base database available

Display of analyte wavelength and its relative intensity and detection limit

Display of the list of potential emission lines, including plasma inherent lines, in the vicinity of a selected wavelength with their relative intensities and detection limits

Graphic display of analyte emission line and potential emission lines for facilitated identification

Generator

Solid state, 40.68 MHz, water-cooled

Torch

Fully demountable torch, 3 mm internal diameter alumina injector, glass inner and outer tubes

Sample introduction

Concentric glass nebulizer and glass cyclonic spray chamber, 3 channels peristaltic pump, sheath gas device

Optical system



Thermally stabilized, 1 meter focal length, 2400 g/mm grating used in 1st and 2nd order with optical resolution <5 pm for 120-320 nm and <11 pm for 320-800 nm

Detection

Dual PMT detection

Wear metals and additive Elements Analysis.



Quantitative Analysis of Soil Extracts with ICP-OES.



Repeatability of Traces and Major Elements in Water



Waste Water and Soil Analysis



Brine Analysis with the Ultima Expert ICP-OES



Very Rapid Analysis of Supply Water, Sludge From Purification Station and Animal Food
