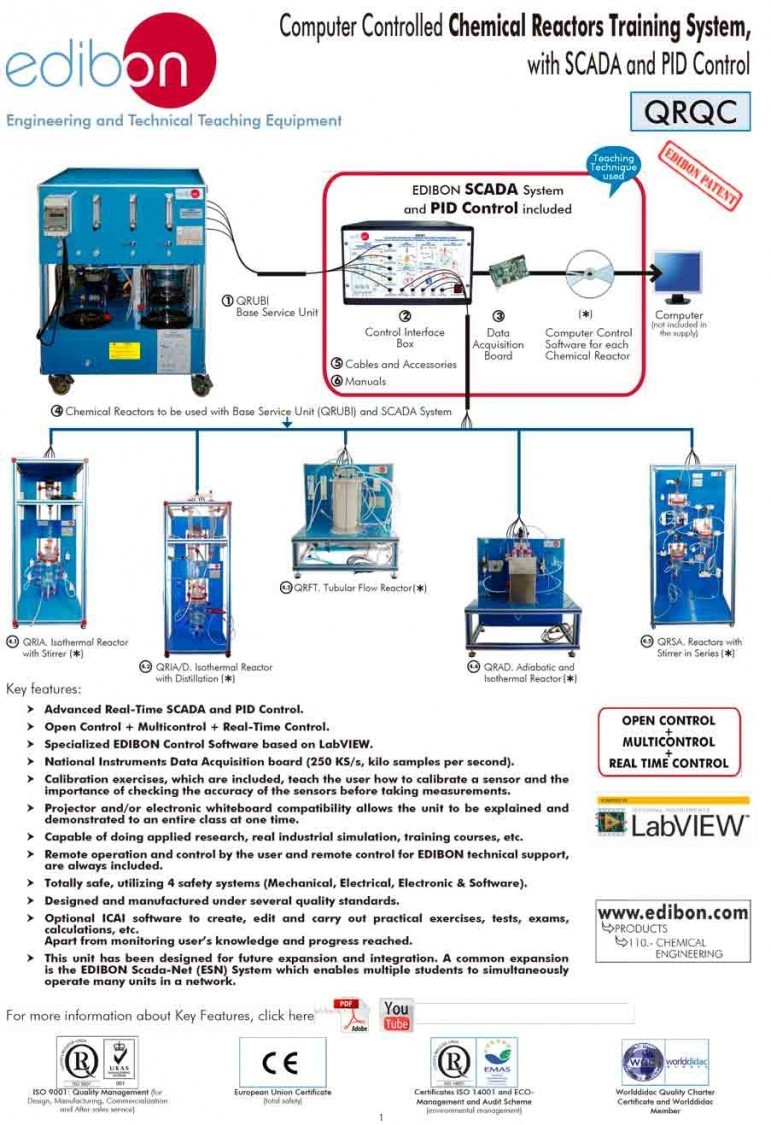

Sistem de instruire a reactoarelor chimice

Advanced Real-Time SCADA and PID Control.

Open Control + Multicontrol + Real-Time Control.

Specialized EDIBON Control Software based on LabVIEW.

National Instruments Data Acquisition board (250 KS/s, kilo samples per second).

Calibration exercises, which are included, teach the user how to calibrate a sensor and the

importance of checking the accuracy of the sensors before taking measurements.

Projector and/or electronic whiteboard compatibility allows the unit to be explained and

demonstrated to an entire class at one time.

Capable of doing applied research, real industrial simulation, training courses, etc.

Remote operation and control by the user and remote control for EDIBON technical support,

are always included.

Totally safe, utilizing 4 safety systems (Mechanical, Electrical, Electronic & Software).

Designed and manufactured under several quality standards.

Optional ICAI software to create, edit and carry out practical exercises, tests, exams,

calculations, etc.

Apart from monitoring user’s knowledge and progress reached.

This unit has been designed for future expansion and integration. A common expansion

is the EDIBON Scada-Net (ESN) System which enables multiple students to simultaneously

operate many units in a network.


Producător: Edibon

Model: QRQC

Cod: 81ea33d0c050

Preţ, fără TVA: La cerere

Distribuie

Telefon: 0744.594.794 / 0251.417.664

E-mail: tehnic@aparatura-laboratoare.ro

Advanced Real-Time SCADA and PID Control.

Open Control + Multicontrol + Real-Time Control.

Specialized EDIBON Control Software based on LabVIEW.

National Instruments Data Acquisition board (250 KS/s, kilo samples per second).

Calibration exercises, which are included, teach the user how to calibrate a sensor and the

importance of checking the accuracy of the sensors before taking measurements.

Projector and/or electronic whiteboard compatibility allows the unit to be explained and

demonstrated to an entire class at one time.

Capable of doing applied research, real industrial simulation, training courses, etc.

Remote operation and control by the user and remote control for EDIBON technical support,

are always included.

Totally safe, utilizing 4 safety systems (Mechanical, Electrical, Electronic & Software).

Designed and manufactured under several quality standards.

Optional ICAI software to create, edit and carry out practical exercises, tests, exams,

calculations, etc.

Apart from monitoring user’s knowledge and progress reached.

This unit has been designed for future expansion and integration. A common expansion

is the EDIBON Scada-Net (ESN) System which enables multiple students to simultaneously

operate many units in a network.

This unit is common for the Chemical Reactors and can work with one or several reactors.

Installation and exchange system of the reactors quick and easy to handle.

It supplies all the services for the operation of each reactor.

Anodized aluminum structure and panels of painted steel. It includes wheels for its mobility.

Main metallic elements of stainless steel.

Diagram in the front panel with similar distribution to the elements in the real unit.

Safety, easy and quick connections.

All elements of this unit are chemically resistant.

This unit is mainly composed of:

 Three tanks of 10 l. made of Pyrex-glass: two of them for the reagents and the other one for the product.

Thermostatic bath of 6 l. that regulates the temperature between (Tªroom + 5ºC) and 70ºC. It includes a heating element (power: 600 W), computer controlled. PID control of the temperature.

 Three pumps, computer controlled:

 Pump to impel the water from the thermostatic bath to the reactor, power: 0.37 KW, max. flow: 80 l./min. to 12.8 m.w.c.

 Two dosing pumps, max. flow: 7 l./h.

Temperature sensor type “J” to measure the water temperature of the thermostatic bath in a continuous way.

 Conductivity cell and a conductivity meter to measure the product conductivity during the reaction, range: 30 μS/cm – 20 mS/cm. Working temperature: 0-100ºC. The software includes a temperature compensation to remove the temperature effect of the conductivity  easurement.

 Three flow meters to measure the gas and reagents flow:

 Flow meter to measure the CO2 flow, range: 0-1440 Nl/h., max. pressure: 0.5 kg/cm2.

 Flow meter to measure the sodium acetate flow, range: 0.54 – 5.4 l./h.

 Flow meter to measure the ethyl acetate flow, range: 0.7-7 l./h.

 Two 3-way valves to divert the reagents between the reactor and the reactive tank (bypass).

Advanced Real-Time SCADA and PID Control.

Open Control + Multicontrol + Real-Time Control.

Specialized EDIBON Control Software based on LabVIEW.

National Instruments Data Acquisition board (250 KS/s, kilo samples per second).

Projector and/or electronic whiteboard compatibility allows the unit to be explained and demonstrated to an entire class at one time.

Capable of doing applied research, real industrial simulation, training courses, etc.

Remote operation and control by the user and remote control for EDIBON technical support, are always included.

Totally safe, utilizing 4 safety systems (Mechanical, Electrical, Electronic & Software).

Designed and manufactured under several quality standards.

Optional ICAI software to create, edit and carry out practical exercises, tests, exams, calculations, etc.

Apart from monitoring user’s knowledge and progress reached.

This unit has been designed for future expansion and integration. A common expansion is the EDIBON Scada-Net (ESN) System which enables multiple students to simultaneously operate many units in a network.
