Laborator de instalatii electrice

SCADA Control System.

Specialized EDIBON Softwares, based on Labview, for:

 - SCADA Control Software.

 - Data Acquisition Software.

 - Computer Aided Instruction Software.

Touch Screens and computers.

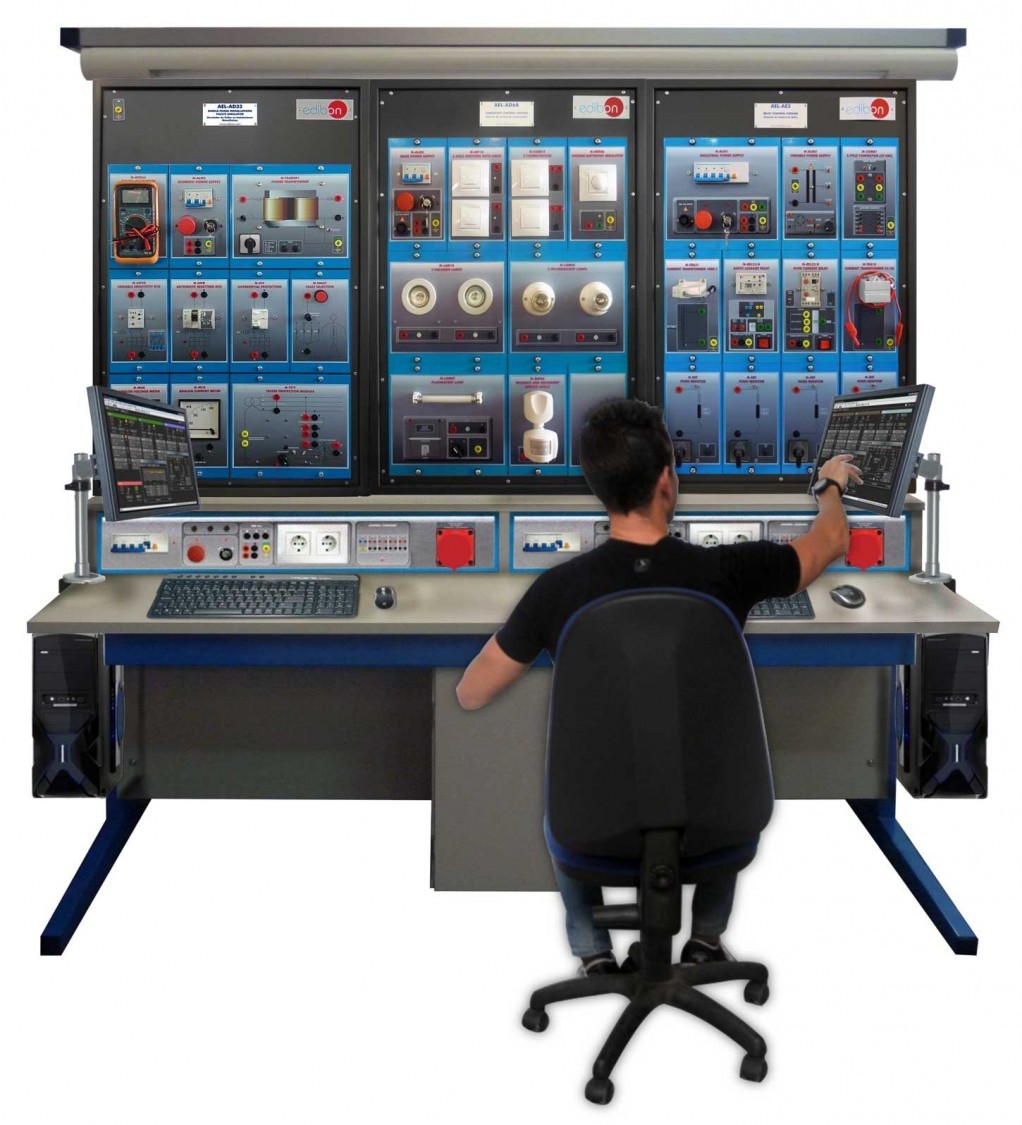

Functional and self contained Electrical Workbench with instrumentation panel with all the required elements to supply power and control in the workbench.

Intuitive, quick and accurate interaction of the user with the Electrical Workbench.

Complete and functional training solution for electricity learning purposes.

Covering all areas of electricity field.


Producător: Edibon

Model: AEL-1

Cod: 508a49410fb9

Preţ, fără TVA: La cerere

Distribuie

Telefon: 0744.594.794 / 0251.417.664

E-mail: tehnic@aparatura-laboratoare.ro

SCADA Control System.

Specialized EDIBON Softwares, based on Labview, for:

 - SCADA Control Software.

 - Data Acquisition Software.

 - Computer Aided Instruction Software.

Touch Screens and computers.

Functional and self contained Electrical Workbench with instrumentation panel with all the required elements to supply power and control in the workbench.

Intuitive, quick and accurate interaction of the user with the Electrical Workbench.

Complete and functional training solution for electricity learning purposes.

Covering all areas of electricity field.

There are two Electrical Workbench versions:

 AEL-WBC. Electrical Workbench (Rail).

 The AEL-WBC is a workbench designed with rails in order to put and remove all electrical modules free. The frame consists of three levels to get a maximum space for the modules and applications.

 Besides, the user can put and remove manually all electrical modules and make free  configurations to construct different applications.

 The advantage of this workbench is that all modules can be put and removed free and quick, so the student can change quickly to other practical exercises.

 AEL-WBR. Electrical Workbench (Rack).

 The AEL-WBR is a workbench designed with strong rack in order to fix all electrical modules. Each module will be fixed with screws. The frame consists of three racks to support different applications.

 The advantage of this workbench is that all applications are perfectly covered to get a

homogeneous and strong unit.

The Electrical Workbench is ready to use Specialized EDIBON Softwares, based on Labview, for:

 SCADA Control Software.

 Data Acquisition Software.

 Computer Aided Instruction Software.

It is a complete and functional training solution for electricity learning purposes, with intuitive, quick and accurate interaction of the user with the Electrical Workbench.

It is a functional and self contained Electrical Workbench, with wide working area for several

applications, with instrumentation panel including all the required elements to supply power and control in the workbench.

The Electrical Workbench is mainly formed by:

 Furniture, itself:

 Formed by the frame that allows to allocate the applications, lighting fitting, table, supports, etc.

 Dimensions: 2000 x 1000 x 1900 mm approx.

 Instrumentation Panel:

 2 x Control and supply panels.

 Three-phase and single-phase power systems.

 Independent Residual Circuit Breaker (RCB).

 Two single-phase sockets.

 Different level control voltages for signals applications.

 Integrated lighting system.

 Technical data:

 1 x Differential Protection, 1 x Emergency Stop Button and 1 x Safety Key.

 Power Terminal Connections: 1 x Three-phase terminals: 380 Vac + N+ GND and 1 x Single-

 phase terminals: 230 Vac + GND and 2 x Single-phase plugs + 2 x Three-phase plugs.

 Control terminals: 2 x 24 Vac., 2 x (+24) Vdc., 2 x (+12) Vdc., 2 x (-12) Vdc. and 2 x (+5) Vdc.

 Power Supply required: 380 Vac 3PH + N + GND.

Optional:

 Touch screen and computer (AEL-PC).

 The workbench can be supplied with one or two touch screens and computers.

ICAI. Interactive Computer Aided Instruction Software System:

 ECM-SOF. EDIBON Classroom Manager (Instructor Software).

 ECM-SOF is the application that allows the Instructor to register students, manage and assign tasks for workgroups, create own content to carry out Practical Exercises, choose one of the evaluation methods to check the Student knowledge and monitor the progression related to the planned tasks for individual students, workgroups, units, etc... so the teacher can know in real time the level of understanding of any student in the classroom.

 Innovative features:

 User Data Base Management.

 Administration and assignment of Workgroups, Tasks and Training sessions.

 Creation and Integration of Practical Exercises and Multimedia Resources.

 Custom Design of Evaluation Methods.

 Creation and assignment of Formulas & Equations.

 Equation System Solver Engine.

 Updatable Contents.

 Report generation, User Progression Monitoring and Statistics.

 ESL-SOF. EDIBON Student Labsoft (Student Software).

 ESL-SOF is the application addressed to the Students that helps them to understand theoretical concepts by means of practical exercises and to prove their knowledge and progression by performing tests and calculations in addition to Multimedia Resources. Default planned tasks and an Open workgroup are provided by EDIBON to allow the students start working from the first session.

 Reports and statistics are available to know their progression at any time, as well as

explanations for every exercise to reinforce the theoretically acquired technical knowledge.

 Innovative features:

 Student Log-In & Self-Registration.

 Existing Tasks checking & Monitoring.

 Default contents & scheduled tasks available to be used from the first session.

 Practical Exercises accomplishment by following the Manual provided by EDIBON.

 Evaluation Methods to prove your knowledge and progression.

 Test self-correction.

 Calculations computing and plotting.

 Equation System Solver Engine.

 User Monitoring Learning & Printable Reports.

 Multimedia-Supported auxiliary resources.
