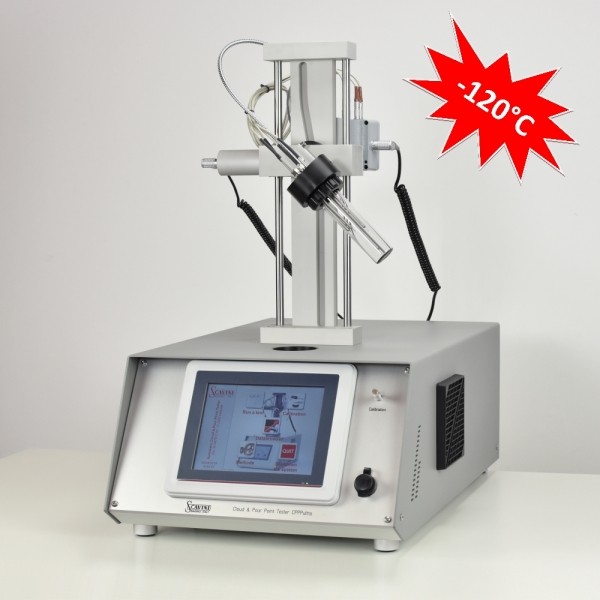

CLOUD AND POUR POINT AUTOMATIC TESTER

The apparatus consists of a benchtop case containing the jacket capable to reach -120°C, the cooling compressor, the electronics and supporting the analytical head. An 8.4” touch screen interface on the front permits to control the instrument enter data, start tests, retrieve, print reports and calibrate the sensors. Two USB and one Ethernet connector on the rear panel allow the user to connect to printers or network.


Producător: Scavini

Model: CPPPultra

Cod: b829ebbb7ce0

Preţ, fără TVA: La cerere

Distribuie

Telefon: 0744.594.794 / 0251.417.664

E-mail: tehnic@aparatura-laboratoare.ro

The apparatus consists of a benchtop case containing the jacket capable to reach -120°C, the cooling compressor, the electronics and supporting the analytical head. An 8.4” touch screen interface on the front permits to control the instrument enter data, start tests, retrieve, print reports and calibrate the sensors. Two USB and one Ethernet connector on the rear panel allow the user to connect to printers or network.

Thermally insulated metal jacket conform to ASTM, IP,

DIN and ISO standard methods and capable to reach

-120°C.

One glass sample container with mirror conform to

ASTM, IP, DIN and ISO standard methods

Stirling cooling compressor capable to reach -120°C

and completely CFC/HCFC free

Optical detection of cloud point based on continuous

reflected IR light percentage . Accuracy of

temperature reading: +/- 0.1°C.

Micro Thermal detection of pour point. Motorized arm

that lifts and tilts the sample container out of the jacket

at programmable intervals: mimic ASTM D 97.

Accuracy of temperature reading: +/- 0.1°C

8.4” touch screen interface that permits to introduce

the analytical data, control the test and display the

results. Tests can be run acc. to ASTM/ISO methods

or to user defined methods. Software includes

diagnose and calibration tools with all modern QC

routines

Two USB and one Ethernet connector for connecting

to printers and network.

English written user manual. CE marked

For 220V - 50 Hz connections: 300 W

Dimensions and weights (l x w x h): 420x700x720 mm.

Weight: 30 kg approx.

Printer

ASTM D 2500, D 97 - IP 219, IP 15 - ISO 3015, ISO 3016
