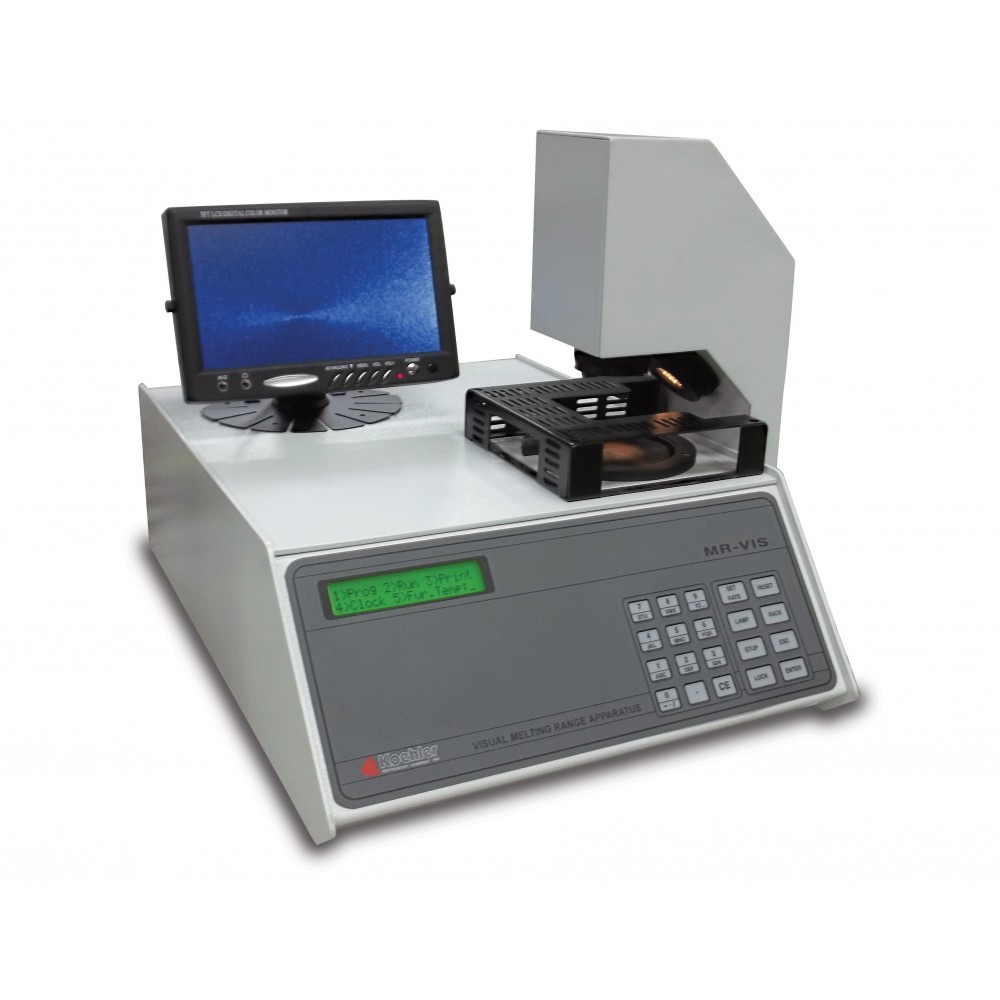

Automatic Melting Point Range Apparatus

Conforms to BP Appendix 5 - Method 6 and GLP specifications

Readily interchanged between automatic and manual detection of melting point ranges

Intelligent Lamp Intensity Control with Soft Start

Storage capacity for up to 20 sample tests

User-interactive software and data entry, including easy alphanumeric entry of sample name, ID number, and date

User selectable operating modes:

AUTO detection mode: Start/end of melting point range is automatically detected by a photosensing infrared device. The melting process is recorded and viewed on-screen in real-time by a CCD camera.

MANUAL detection mode: Start/end of melting point range can be selected manually with a key-press by user. Sample melting point can be determined as per BP method by ‘Heat & Cool’ temperature function.

As above, the melting process is recorded and viewed on-screen in real-time by a CCD camera.


Producător: Koehler

Model: K90100

Cod: 071cd06ce595

Preţ, fără TVA: La cerere

Distribuie

Telefon: 0744.594.794 / 0251.417.664

E-mail: tehnic@aparatura-laboratoare.ro

The Automatic Melting Point Apparatus is the latest technology for microprocessor-based determinations of melting point ranges of crystalline, powdered and polymeric materials, and is used to assess sample purity. Requires approximately 5mg of sample spread uniformly on a glass slide, covered with a glass coverslip. The slide is placed on a uniformly heated, round furnace and subjected to a heating profile as required by the user. Precise temperature control gives reproducible results to within 1%. The unit contains an automatic temperature safety cut-off feature if no melting points are detected 15°C above the expected melting point or if the oven reaches 315°C. The melting process is magnified, recorded, and viewed on-screen in real-time by a CCD camera. The change in physical appearance of the sample with respect to temperature is recorded, and the start/end of melting is observed automatically. A representation of the entire process can be printed out in graphical form for validation.

Conforms to the specifications of:

BP Appendix 5-Method 6; GLP

Visual Image:

10x magnified displayed on monitor

Temperature Range:

ambient + 5 to 315°C

Heating Rates:

0.2, 0.5, 1.0, 2.0, 3.0, 6.0, 12.0°C/min

Temperature Readability:

0.1°C

Cooling Time:

20 minutes (300°C to ambient)

Temperature Accuracy:

±0.5°C (ambient + 5 to 200°C)

±0.8°C (200 to 315°C)

Sample size:

5 mg (approximately)

Sample Holder:

Glass Slide ≤1mm ±0.02mm thick

Sample Cover:

Glass Coverslip ±0.17mm thick

Temperature Sensor:

Pt-100 (2 wire RTD)

Test Storage:

Up to 20 tests with parameters

Glass slides (pack of 500)





Cover slips (pack of 1000)





Sampling jig





BP Appendix 5-Method 6; GLP
