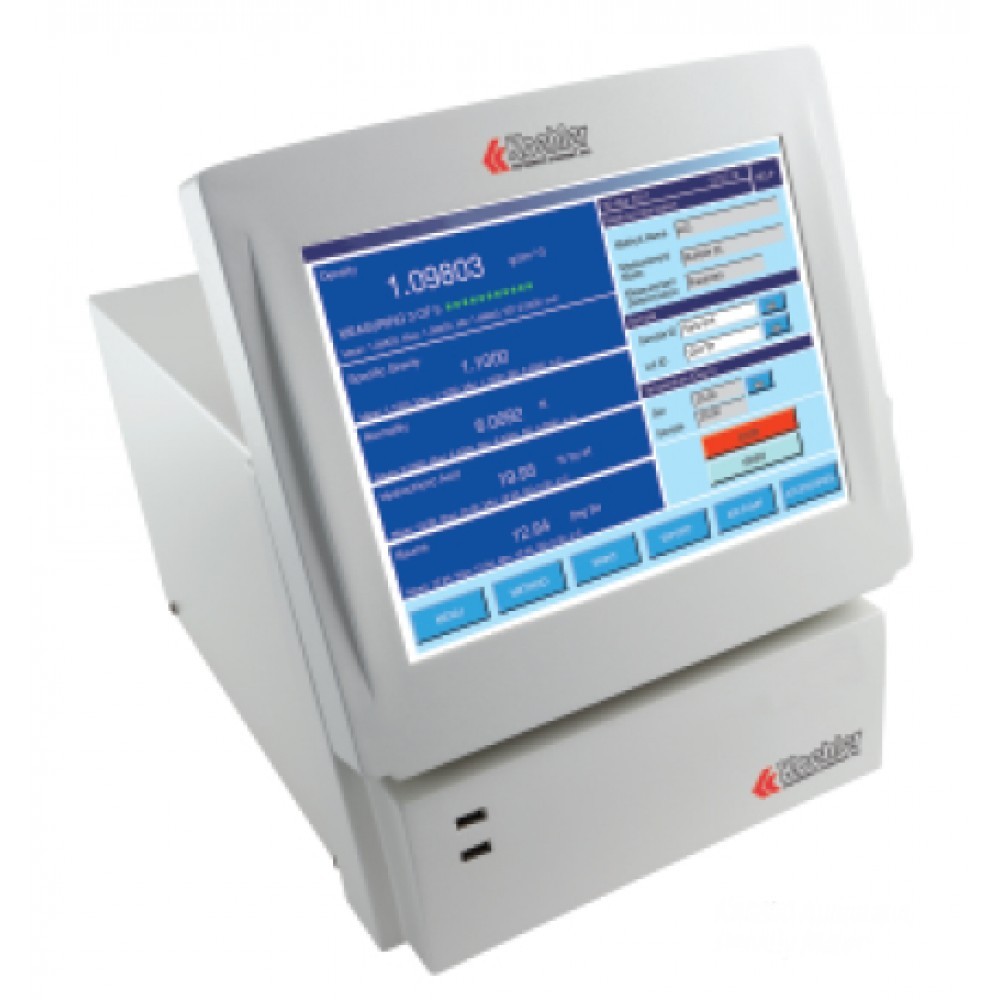

Automatic Density Meter

Density is a fundamental physical property that can be used in conjunction with other properties to characterize the quality of crude oils, light and heavy fractions of petroleum and petroleum products. The test method covers the determination of the density or relative density of crude oils, petroleum distillates and viscous oils that can be handled in a normal fashion as liquids at test temperatures between 15 and 35°C.


Producător: Koehler

Model: K86200

Cod: c3ce110b514c

Preţ, fără TVA: La cerere

Distribuie

Telefon: 0744.594.794 / 0251.417.664

E-mail: tehnic@aparatura-laboratoare.ro

Density is a fundamental physical property that can be used in conjunction with other properties to characterize the quality of crude oils, light and heavy fractions of petroleum and petroleum products. The test method covers the determination of the density or relative density of crude oils, petroleum distillates and viscous oils that can be handled in a normal fashion as liquids at test temperatures between 15 and 35°C.

Conforms to the specifications of:

ASTM D1250, D4052, D5002, D5931; ISO 12185 DIN 51757

Measurement Ranges:



Density:

0 to 3 g/cm3

Temperature:

0°C to 95°C

Pressure:

0 to 10 bars

Measurement Modes:

Continuous, Single, Multiple

Minimum Sample Volume:

1 ml, approximately

Wetted Materials:

Borosilicate glass, Teflon (PTFE, ECTFE)

Display:

10.4 inch diagonal, 800-600 pixels, color, Flat Panel Monitor with Resistant Touch Screen Interface, 200 bit brightness, gasketted for spill protection.

Communication Interface:

Touch Screen User Interface

5 – USB Ports

1 – Cat. 5 Port

2 – RS232 Ports

Keyboard, Bar Code Scanner, Mouse, Network Capabilities

Video and Magnification:

Video assisted view of cell, capable of approximately 10X magnification

Internal Memory:

2 GB Non-removable Compact Flash

CFR Part 11 Option





Refractometer Control Module K86204 Heated Interface Attachment





Bar Code Scanner - USB





Fluke Hart Thermometer Consists of handheld digital thermometer, temperature probe and calibration certificate





Inkjet USD Printer Kit Includes inkjet printer and USB communication cable





Laser USB Printer Kit Includes laser printer and USB communication cable





Column Serial Printer Kit Includes 40 Column Serial (RS232) Printer, Null Modern Cable, and Adapter





ASTM D1250, D4052, D5002, D5931; ISO 12185 DIN 51757
