Aparat testare pierderi prin evaporare

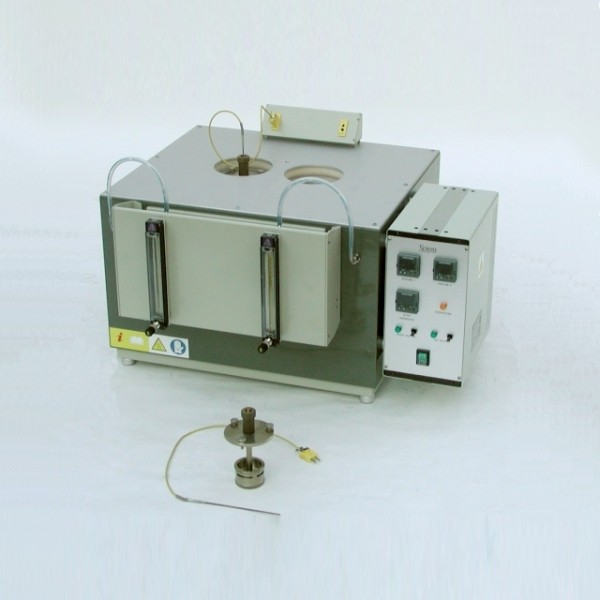

The apparatus, in acc. with ASTM D 2595, consists of a case hosting the aluminium block and supporting precision flowmeters.

The block has jackets for the introduction of the cups: the air preheater is in the bottom.

Each position is equipped with a digital display, connected to a thermocouple, that continuously shows the temperature of the air coming out from the cell.




Producător: Scavini

Model: ASTM D2595

Cod: ASTM D2595

Preţ, fără TVA: La cerere

Distribuie

Telefon: 0744.594.794 / 0251.417.664

E-mail: tehnic@aparatura-laboratoare.ro

Enamel finished benchtop steel case.

- High efficiency thermal insulation to avoid heating of the external case.

- Aluminium block with holes for the introduction of the cell.

- Air preheater inserted in the bottom of the block, one for each position: each preheater is independently regulated through an electronic voltage variator.

- Stainless steel band heaters.

- Covers, air eduction tubes hoods and cups, stainless steel. Kalrez gaskets.

- Digital displays (one for each position) for the indication of the temperature of the air coming out from the cells. Probe: type K thermocouple (also supplied).

- High precision flowmeters with needle valve and complete with calibration certificate, 0-3 l/min scale. Air filter fixed on the case and containing glass wool.

- Microprocessor thermoregulator wiith PID action: built-in digital thermometer 0.1°C accuracy. Pt100 probe. Test range: from ambient to 316°C.

- Safety devices against overheating.

- English written user manual.

- For 220 V/50 Hz connection. Power consumption 2000 W.

- Dimensions (l x w x h): mm 860 x 730 x 520 approx. Weight:

kg 100 approx. (2-place version)

- CE approved.

- Two and four-place units available

Standard

ASTM D 2595

Microprocessor thermoregulator

PID action

Test range:

from ambient to 316°C.

For 220 V/50 Hz connection.

Power consumption 2000 W.

Dimensions (l x w x h):

mm 860 x 730 x 520 approx.

Weight:

kg 100 approx. (2-place version)

Denumire accesoriu

COD

Digital thermometer

AD2595-A00

Type K thermocouple with supports (for air temperature measurement)

AD2595-C00

Cover and eduction tube

AD2595-C01

Sample cup with hood

AD2595-C02

Gasket

AD2595-C03

ASTM 3C thermometer (-5/+400°C)

TA003C-N00

ASTM D 2595
