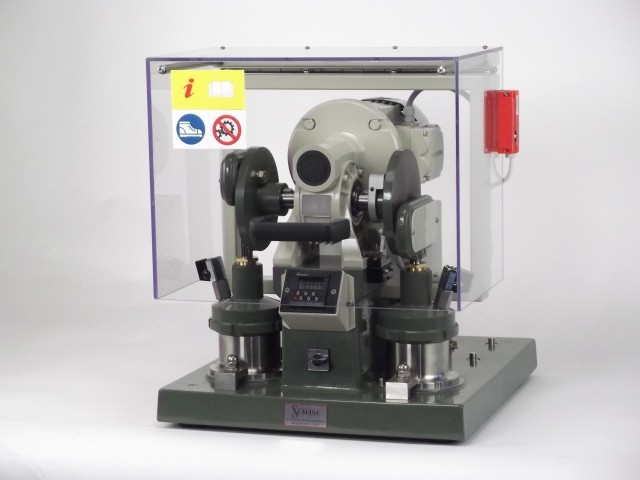

Aparat testare durata de viata unsori
The electrically operated grease working machine consists of a geared motor for 60 strokes/min mounted on a aluminium base with clamps to fix the grease workers. The number of strokes, continuously showed on a display, can be preset to stop the worker after any required number of strokes up to 100,000.
Producător: Scavini
Model: ASTM D 217
Cod: AD0217-100
Preţ, fără TVA: La cerere
Telefon: 0744.594.794 / 0251.417.664
E-mail: tehnic@aparatura-laboratoare.ro
Worked penetration results may be used to establish the consistency of lubricating greases after prolonged working. The change in worked penetration results on a grease after prolonged working are believed to be a measure of its shear stability under the conditions of the test.
The electrically operated grease working machine consists of a geared motor for 60 strokes/min mounted on a aluminium base with clamps to fix the grease workers. The number of strokes, continuously showed on a display, can be preset to stop the worker after any required number of strokes up to 100,000.
Cast aluminium base, machine worked and enamel finished. Benchtop version.
Two worker plates, 51 holes.
Wrench for opening and closing of grease workers.
CE marked.
Single and dual units available.
Model | ASTM D 217 |
Geared motor unit | for 60 strokes/min. |
Flanges | Two, crank, castiron |
Grease worker | two |
Worker plates | 51 holes |
Counter | Programmable ; with six digits. |
For 380 V/50 Hz connections: | 600 W power consumption |
Dimensions (l x w x h): | mm 450 x 450 x 350 approx. |
Weight: | 30 kg approx. |
Worker plate, 51 holes | AD0217-A00 |
Worker plate, 270 holes (FTMS 313.3) | AD0217-A01 |
Lip seal for rod | AD0217-A02 |
Overflow ring | AD0217-A03 |
Blank cup cover (used when preheating the sample prior to test) | AD0217-A04 |
Imaginile prezentate au caracter informativ şi uneori pot conţine unele inadvertenţe.
