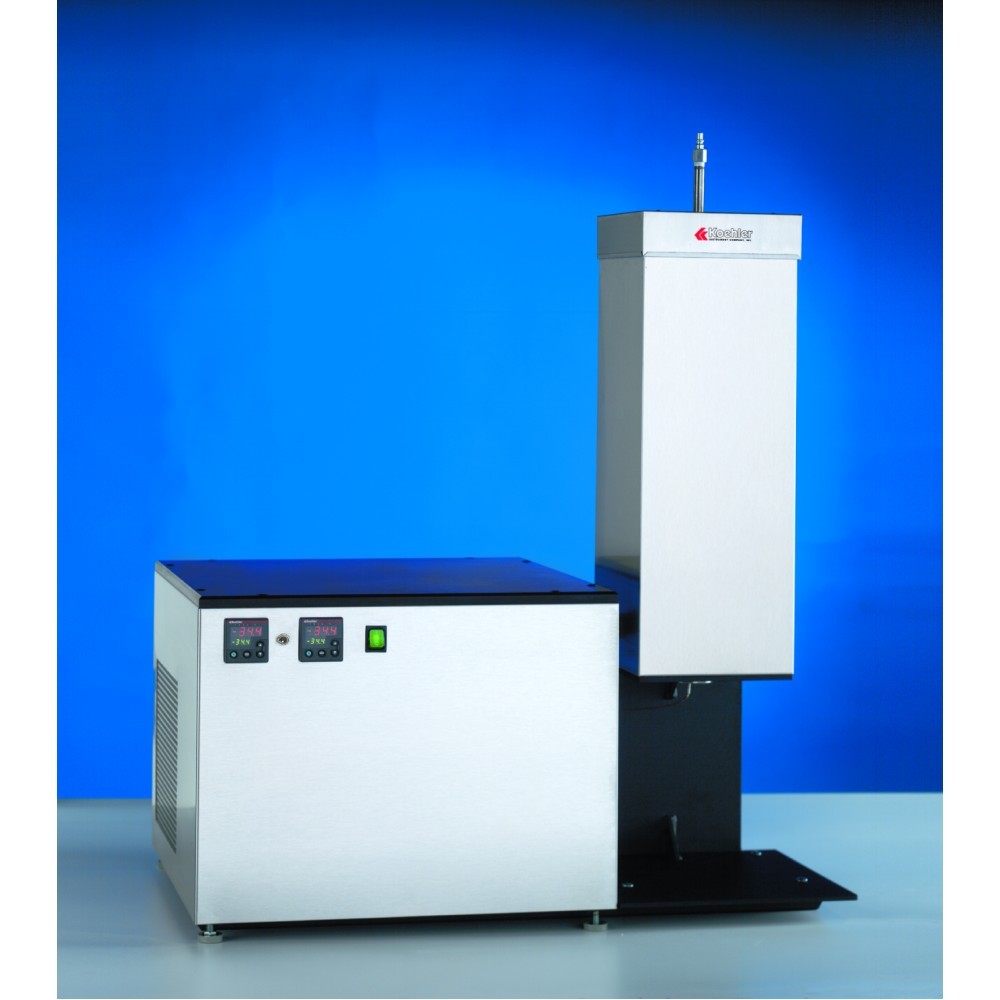

Aparat pentru testare Mobilitatea Unsorii

Performs grease mobility tests at low temperatures to predict pumpability characteristics. Determines the suitability of greases for applications in centralized or bulk systems where pumps, valves or pipes are used to distribute or transfer grease


Producător: Koehler

Model: K22685

Cod: K22685

Preţ, fără TVA: La cerere

Distribuie

Telefon: 0744.594.794 / 0251.417.664

E-mail: tehnic@aparatura-laboratoare.ro

Determines the resistance of lubricating grease to flow under prescribed conditions. Mobility is measured in grams per second by pumping the sample through a standardized SOD pressure viscometer at controlled temperature and pressure.

Test temperatures as low as –30°F (–34.4°C)

Conforms to the specifications of:

U.S. Steel Method; ASTM Draft Method

Consists of pressure viscometer, cooling bath and refrigeration system.

 The stainless steel pressure viscometer is fitted with a modified No.1, 40:1 ratio capillary.

After the sample is loaded in the pressure viscometer, the assembly is installed in the cooling bath and allowed to reach the test temperature.

Mechanically refrigerated cooling bath can attain test temperatures as low as –30°F (–34.4°C) with stability of ±2°F (±1°C).

With the sample at the test temperature, the flow of grease is started under the selected pressure on a nitrogen tank regulator.

Flow per second is determined by collecting the grease for a specified period.

Includes sample collector turntable.

Model

Grease mobility

Minimum Temperature:

–30°F (–34.4°C)

Control Stability:

±2°F (±1°C)

Cooling Chamber:

12x12x30 (30.5x30.5x76)

Refrigeration Unit:

15x12x12 (38x30x30)

POWER

220-240V 50 or 60Hz, Single Phase, 3A

Net Weight:

114 lbs (51.7 kg)

Grease Cylinder (pressure viscometer) with modified No.1, 40:1 capillary

-

Sample Collector Turntable

-

Grease Cylinder with plunger and fittings

K22680-0-22

Capillary

K22680-0-16

Thermometer dial type - Range: –100 to +100°F with 2°F subdivisions

250-100-001

for applications in centralized or bulk systems where pumps, valves or pipes are used to distribute or transfer grease
