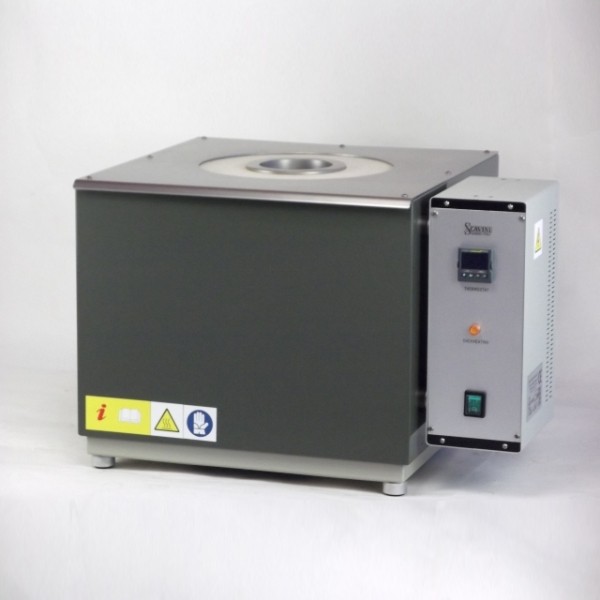

Aparat pentru determinarea rezidului de carbon RAMSBOTTOM
The apparatus consists of a benchtop case containing a five-place steel furnace. It can reach
temperatures up to 600 °C.
Enamel finished steel case, benchtop version.
Microprocessor controlled thermoregulator with PID action and built-in digital display.
Steel block heater, with five wells 25.45 mm diameter, 76 mm depth with hemispherical bottom
Microprocessor controlled thermoregulator with PID action and built-in digital display 1 °C accuracy showing the temperature and the set-point. Four buttons easy-to-use
keyboard to preset working temperature. Probe: stainless steel coated type K thermocouple. Regulation accuracy: ±1°C
Working range: from ambient to 600°C
Coaxial heater with ceramic supports, SSR controlled
Stainless steel forceps for coking bulbs handling
Safety devices against overheating
For 220 V/50 Hz connections: 1500 W power consumption
Dimensions (l x w x h): 450 x 450 x 600 mm
Weight: 50 kg
Stainless steel control bulb
Type K thermocouple for control bulb
Stand for holding and filling the bulbs
Official Certificate for Pt100 simulator
ASTM D 524 – IP 14 – ISO 4262
