Aparat pentru determinarea continutului de guma din combustibili

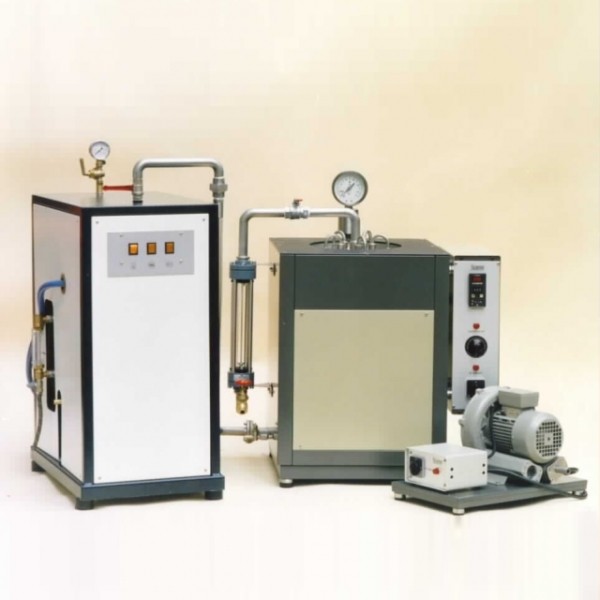

The apparatus consists of a benchtop case which houses an aluminium heating block. Two versions are available: one for the “Air Jet” test on gasoline and one for both the “Air and Steam Jet” tests with a built-in steam superheater. Steam generator and air blower are also available.




Producător: Scavini

Model: AD0381

Cod: a37834571d7a

Preţ, fără TVA: La cerere

Distribuie

Telefon: 0744.594.794 / 0251.417.664

E-mail: tehnic@aparatura-laboratoare.ro

The apparatus consists of a benchtop case which houses an aluminium heating block. Two versions are available: one for the “Air Jet” test on gasoline and one for both the “Air and Steam Jet” tests with a built-in steam superheater. Steam generator and air blower are also available.



Enamel finished benchtop steel case with robust base to support the heating block.



Five-place aluminium heating block with steam outlets. Stainless steel steam coils and outlets (removable). Stainless steel coaxial heater. Stainless steel steam superheater inserted in the case. Complete with regulator.



High precision flowmeter for the Air Jet test: range from 0 to 12 m3/h

Stainless steel gauge for the Steam Jet Test: range from 0 to 6 psi

Microprocessor thermoregulator with built-in digital display 1°C accuracy. The probe is a PT100 RTD. Regulation accuracy ± 0.5 C. Working range: from ambient to 300°C

Safety device against overheating

Easy access control box placed on the right side of the apparatus containing all the electronic and electrical components: anodized aluminium control panel with english written indications. Main and heater switch.

English written user manual

For 220 V/50 Hz connections. Power consumption: 3500 W

Dimensions (l x w x h): mm 860 x 560 x 840

Weight: 98 Kg

CE marked

Denumirea



Pret

Electric Steam generator (400V/50 Hz, 10 kW)



La cerere

Air Blower (380 V/50 Hz, 0.5 kW)



La cerere

PT100 simulator



La cerere

Official Certificate for Pt100 simulator



La cerere

ASTM D 381 - IP 131 - ISO 6246
