Aparat pentru determinarea carcateristicilor de extractie a apei din unsori

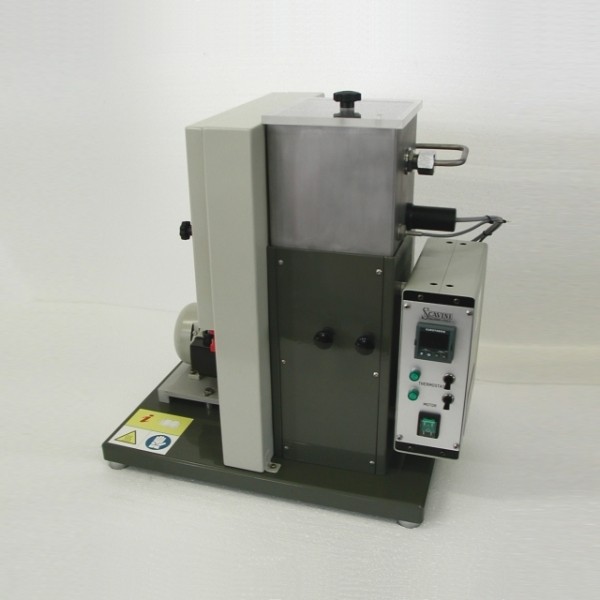

The apparatus consists of a benchtop case supporting the motor, the bath, the pump and the water
pipes. All the electronics is contained in a control box fixed to the instrument body.
Producător: Scavini
Model: ASTM D1264
Cod: ASTM D1264
Preţ, fără TVA: La cerere
Telefon: 0744.594.794 / 0251.417.664
E-mail: tehnic@aparatura-laboratoare.ro
- Enamel finished benchtop steel case.
- Test bearing housing and shield manufactured exactly as specified
in the method.
- Stainless steel reservoir complete with inlet and outlet lines, aluminium housing mount, chromium plated brass circulating pump, 1/4 HP electric driving motor with belts;
- Stainless steel cartridge heater.
- Microprocessor thermoregulator with built-in digital display 0.1°C
accuracy. Probe: Pt100 RTD. Working range: from ambient to 100°C.
Suitable for working at 37.8 ± 0.1°C and 79 ± 0.1°C;
- Motor and pulleys for operation at 600 ± 30 rpm;
- The motor and pulley arrangement permits to start the water pump
without starting the bearing for water flow calibration;
- Regulation and by-pass valve to regulate the flow at 5 ± 0.5 ml/sec
through a 1 mm capillary;
Model |
|
Working range: | from ambient to 100°C |
Suitable for working at | 37.8 ± 0.1°C and 79 ± 0.1°C |
Motor and pulleys for operation | at 600 ± 30 rpm |
flow | at 5 ± 0.5 ml/sec |
For 220 V/50 Hz connections: | 600 W power consumption; |
Dimensions: | mm 400 x 400 x 600. |
Weight: | 25 kg. |
PT100 simulator | CAL001 |
Officially certified PT100 simulator | CAL002 |
Consumables |
|
Test bearing type 6204 | AD1264-C00 |
ASTM 34C thermometer (+25°C/+105°C) | TA015C-N00 |
Imaginile prezentate au caracter informativ şi uneori pot conţine unele inadvertenţe.
