Aparat determinare vascozitatea Saybolt

Microprocessor control of temperature between ambient and 240 °C (464°F)

Four tube capacity

Dual digital displays show setpoint and actual temperature

Selectable temperature scale - Celsius or Fahrenheit

Conforms to ASTM D88, D244, E102, and related specifications


Producător: Koehler

Model: SV3000

Cod: b0c0182af201

Preţ, fără TVA: La cerere

Distribuie

Telefon: 0744.594.794 / 0251.417.664

E-mail: tehnic@aparatura-laboratoare.ro

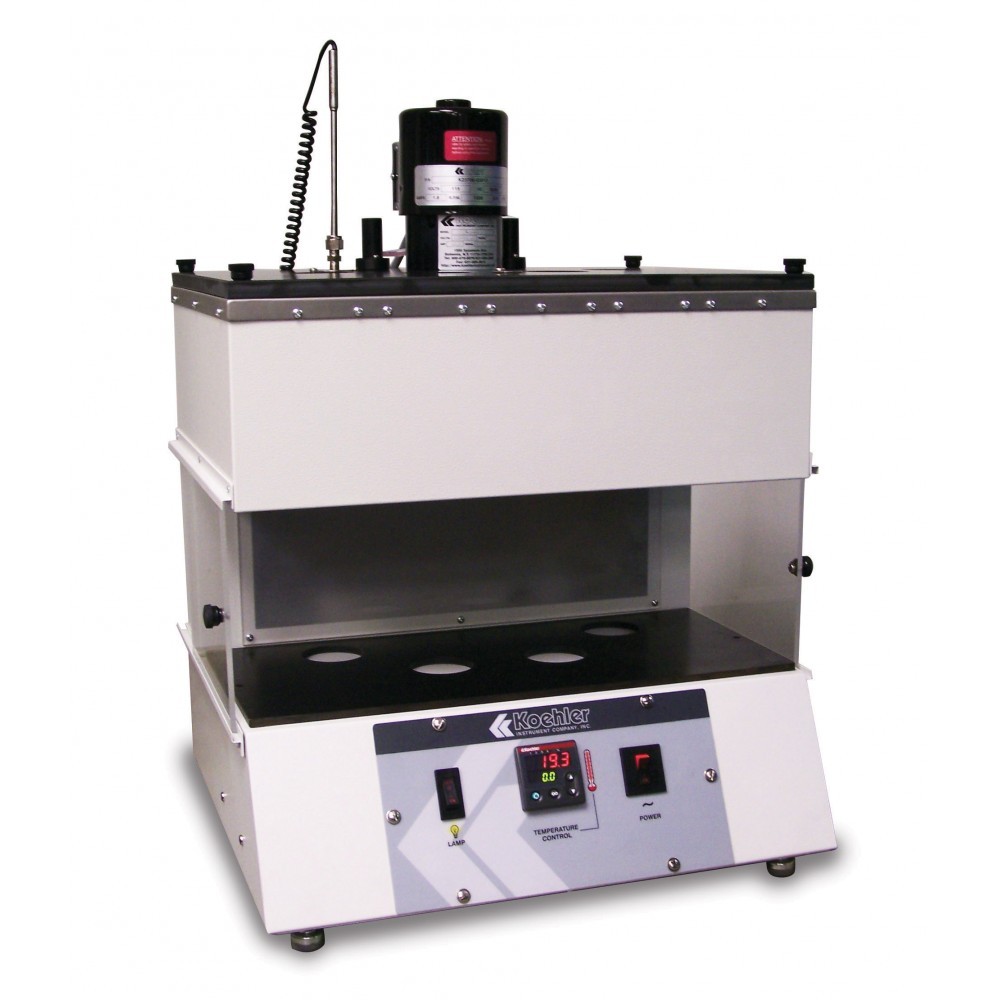

Constant temperature bath for viscosity determinations using Saybolt viscometer tubes and orifices. Microprocessor PID circuitry assures precise temperature control within ASTM specified tolerances throughout the operating range of the bath. Simple push-button controls and dual digital displays permit easy setting and monitoring of bath temperature. Two place calibration offset is provided. Accommodates four viscometers and four 60mL receiving flasks. Sliding draft shields and a chemical-resistant alignment plate facilitate handling of the flasks, and glare-free fluorescent backlighting is provided for easy viewing of the samples. Insulated bath interior is constructed entirely of heavy gauge stainless steel. A built-in overflow pipe and drain valve simplifies filling of the bath fluid to the proper level. Chemical resistant top plate provides excellent insulation and is easily removed to allow for cleaning of the bath interior. A cooling coil for tap water or refrigerated coolant is provided for operation at near-ambient temperatures. Steel cabinet has leveling feet and a chemical resistant polyurethane-epoxy finish.



Conforms to the specifications of:

ASTM D88, D244, E102, AASHTO T72; FTM 791-304

Capacity:

4 viscometer tubes

Temperature Range:

ambient to 464 °F (240 °C)

Temperature Stability:

± 0.05 °F (± 0.03 °C)

Bath Capacity:

19 L

Recommended Bath Medium:

water or suitable heat transfer fluid

Electrical:

220-240V 50/60Hz, Single Phase, 6.4A

Dimensions:

lxwxh,in.(cm): 29 x 25 x 33 (74x63.5x84)

Net Weight:

29.5 kg

Saybolt Viscometer Tube, Brass



La cerere

Saybolt Viscometer Tube, Stainless Steel



La cerere

Saybolt Universal Orifice



La cerere

Saybolt Universal Orifice with Calibration Certificate



La cerere

Furol Orifice



La cerere

Sayblt Furol Orifice with Calibration Certificate



La cerere

Thermometer Support



La cerere

ASTM 17F Thermometer



La cerere

ASTM 17C Thermometer



La cerere

Oil Strainer



La cerere

ASTM D88, D244, E102, AASHTO T72; FTM 791-304
