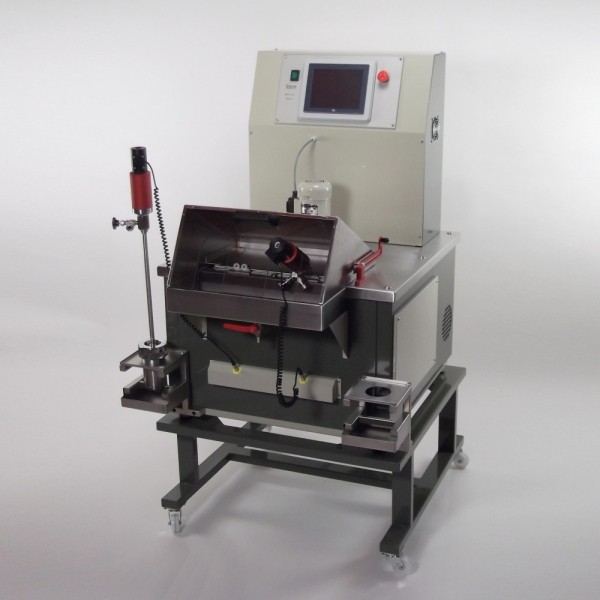

Aparat determinare stabilitate oxidare TFOUT

APPARATUS FOR THE DETERMINATION OF OXIDATION STABILITY OF INHIBITED MINERAL INSULATING OILS, STEAM TURBINE OILS (RPVOT) AND GASOLINE AUTOMOTIVE ENGINE OILS (TFOUT) ASTM D 2112 - D 2272 - ASTM D 4742


Producător: Scavini

Cod: AD2272-500

Preţ, fără TVA: La cerere

Distribuie

Telefon: 0744.594.794 / 0251.417.664

E-mail: tehnic@aparatura-laboratoare.ro

The apparatus consists of a benchtop case hosting a stainless steel tank with two independent motors for the rotation of the vessels equipped with rotating heads with electronic pressure transducers. The 8.4” Panel Pc with touch screen interface on the front permits to control the instrument, insert test data, show pressure and temperature on graphs, save and retry test reports that can be printed by connecting a printer via the USB or Ethernet ports available on the back.

Microprocessor controlled thermoregulator with PID action and built-in digital display 0.1 °C accuracy. Probe: Pt100 RTD. Working range: from ambient to 170°C. Regulation accuracy: ± 0.1°C.

8.4” touch screen interface that permits to control the instruments, start tests, show pressure and temperature on a graph, save and retry data, perform diagnostic and calibration. Pressure can be shown both in kPa or psi.

CE marked.

Stainless steel tank.

Capacity: 70 liters.

Top cover, heaters, SSR controlled

Stainless steel

Support rack for the vessels

one

Electric stirrer

Yes, to ensure temperature uniformity

Microprocessor controlled thermoregulator

PID action and built-in digital display 0.1 °C accuracy

Probe:

Pt100 RTD

Working range

from ambient to 170°C

Regulation accuracy

± 0.1°C

Motor

Independent motor for each vessel, inverter controlled.

Safety devices

against overheating and low level

Interfaces

N° 2 USB + n° 1 Ethernet + n° 1 RS-232 ports for connection to printers, network

Power supply

220 V/50 Hz connections: 4000 W power consumption

Dimensions/ Weight:

750 x 750 x 980 mm / 150 kg

Denumire accesoriu

COD

Rotating vessel, AISI 316 stainless steel

AD2272-A00

Table support with swivelling castors

AD2272-A01

Printer

PRN01

PT100 simulator

CAL001

Official Certificate for Pt100 simulator

CAL003

ASTM D 2112



D 2272



ASTM D 4742
