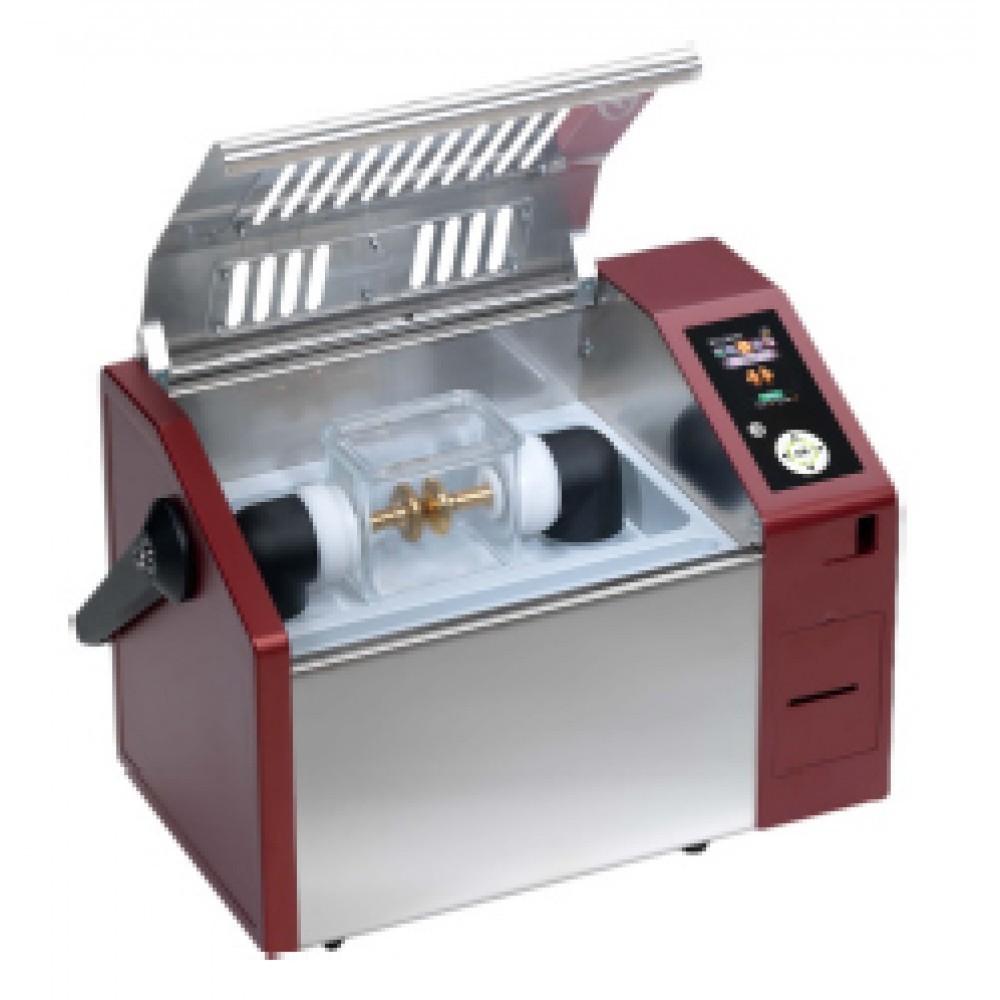

Aparat automat testare strapungere dielectrica
- Conforms to ASTM D877, D1816 and related test specifications
- Output voltage: 100kV
- Features 2.8” ultra bright color display for optimal readability and mobility
- Built-in printer offers direct evaluation and reporting of results
- Internal battery, external 12V power supply
- Automatic Vernier function for electrode gap spacing
- Measurement of Silicone based oils
- Internal temperature measurement of oil sample
- Bluetooth PC Connectivity and USB Flashdrive
- Capability
Producător: Koehler
Cod: K16177
Preţ, fără TVA: La cerere
Telefon: 0744.594.794 / 0251.417.664
E-mail: tehnic@aparatura-laboratoare.ro
The majority of high-voltage transformers, cables, switchgears, transducers, capacitors, and rectifiers use insulating oils for insulating electrically live parts and to carry off thermal energy. The quality of the insulating oil must be checked at regular intervals to ensure a long equipment service life. The most important requirement of an insulating oil is a high dielectric strength. Determination of the dielectric breakdown voltage of insulating oils provides an early detection method for any reduction in the insulating properties.
- Conforms to ASTM D877, D1816 and related test specifications
- Output voltage: 100kV
- Features 2.8” ultra bright color display for optimal readability and mobility
- Built-in printer offers direct evaluation and reporting of results
- Internal battery, external 12V power supply
- Automatic Vernier function for electrode gap spacing
- Measurement of Silicone based oils
- Internal temperature measurement of oil sample
- Bluetooth PC Connectivity and USB Flashdrive
- Capability
Included accessories:
- Calibration Sheet
- User Manual
- AC Power Cable
- PC Software
- Integrated Battery
- Integrated Printer
Conforms to the specifications of: | ASTM D877, D1816; BS EN 60156; CEI EN 60156; IEC 156; VDE 0370 Pt. 5 |
Output Voltage: | Up to 75kV rms symmetrical |
Voltage measurement accuracy: | 0 - 75kV ±1kV |
Voltage slew rate: | 0.5 - 10kV/s |
Resolution (displayed): | 0.1kV |
Power Supply: | 85V - 264V, 47Hz - 63Hz, 12V external supply |
Power consumption: | 60VA |
Internal rechargeable battery: | 1 x 12V / 7.2Ah |
Switch-off time on flashover: | < 5μs |
Measurement of oil temperature: | 0 - 100°C / 32 - 212°F |
Temperature Resolution: | 1°C / 1.8°F |
Display: | 2.8” color (ultra bright) |
Customer-specific programs: | Unlimited |
PC Software: | Included |
Interface: | Bluetooth |
USB: | USB memory stick |
wxdxh,in.(cm): | 21.51x13.5x11.81 (52.1x34.3x30) |
Net Weight: | 71 lbs (32 kg) Including Battery |
Denumire accesoriu | COD |
D1816 Test Cell for kV100 | K16177-5 |
D877 Test Cell for kV100 | K16177-6 |
IEC 156 Test Cell with Ball Electrode | K16177-7 |
IEC 156 Test Cell with Spherical Cup / | K16177-8 |
VDE Electrode | VDE |
ASTM D877, D1816; BS EN 60156; CEI EN 60156; IEC 156; VDE 0370 Pt. 5
