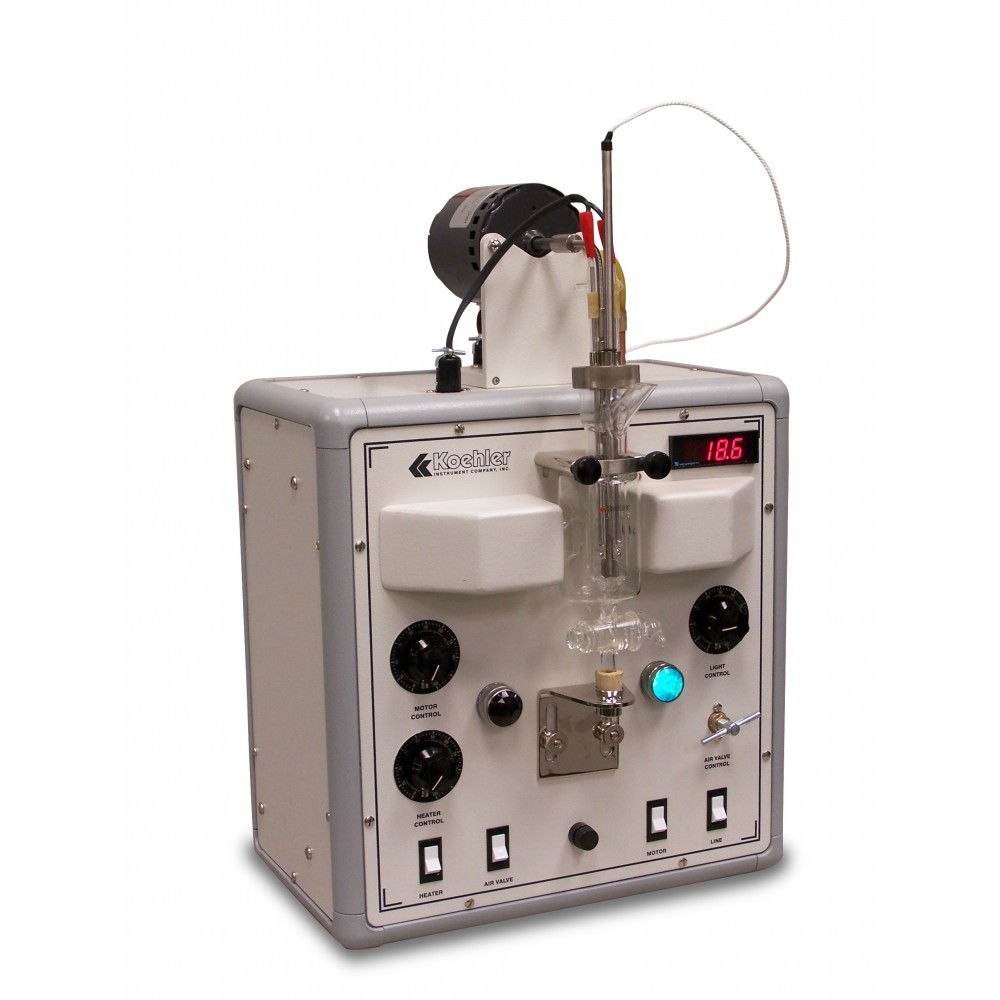

Aparat automat de determinare a punctului de Anilina

Conforms to ASTM D611 and related specifications

For samples ranging from clear to very dark

Temperature range 0°C to 150°C (32°F to 302°F)

Digital temperature display

Producător: Koehler

Model: K10200

Cod: a5eb943657e3

Preţ, fără TVA: La cerere


Telefon: 0744.594.794 / 0251.417.664


Performs aniline point and mixed aniline point determinations automatically by means of a modified thin film technique (ASTM D611 Method E). The sample-aniline mixture is directly heated by a platinum immersion heater and the aniline point is detected photoelectrically. Temperature is displayed on a large LED indicator. Built-in pressure regulator and solenoid valve permit the use of cooling air for quicker cooling cycles or to determine subambient aniline point temperatures. Aniline points as low as 0°C (32°F) can be determined with the use of refrigerated cooling air. Equipped with variable controls for heater, light source and stirrer speed. Cabinet exterior surfaces have a chemical resistant polyurethane enamel finish.

Conforms to the specifications of:

ASTM D611; IP 2; ISO 2977; DIN 51775; FTM 791-3601; NF M 07-021

Testing Range:

0 to 150°C (32 to 302°F)

Temperature Display:



220-240V 50/60Hz, Single Phase, 0.2A


Ixwxh,in.(cm): 14 1⁄2x8 1⁄2x20 3⁄4 (37x22x53)

Net Weight:


ASTM 33F Thermometer - Range: –36.5 to +107.5°F 1



ASTM 33C Thermometer - Range: –38 to +42°C



ASTM 34F Thermometer - Range: 77 to 221°F 1



ASTM 34C Thermometer - Range: 25 to 105°C



ASTM 35F Thermometer - Range: 194 to 338°F 1



ASTM 35C Thermometer - Range: 90 to 170°C



Borosilicate Glass Test Cell with drain



Heating-Cooling Tube with platinum element
