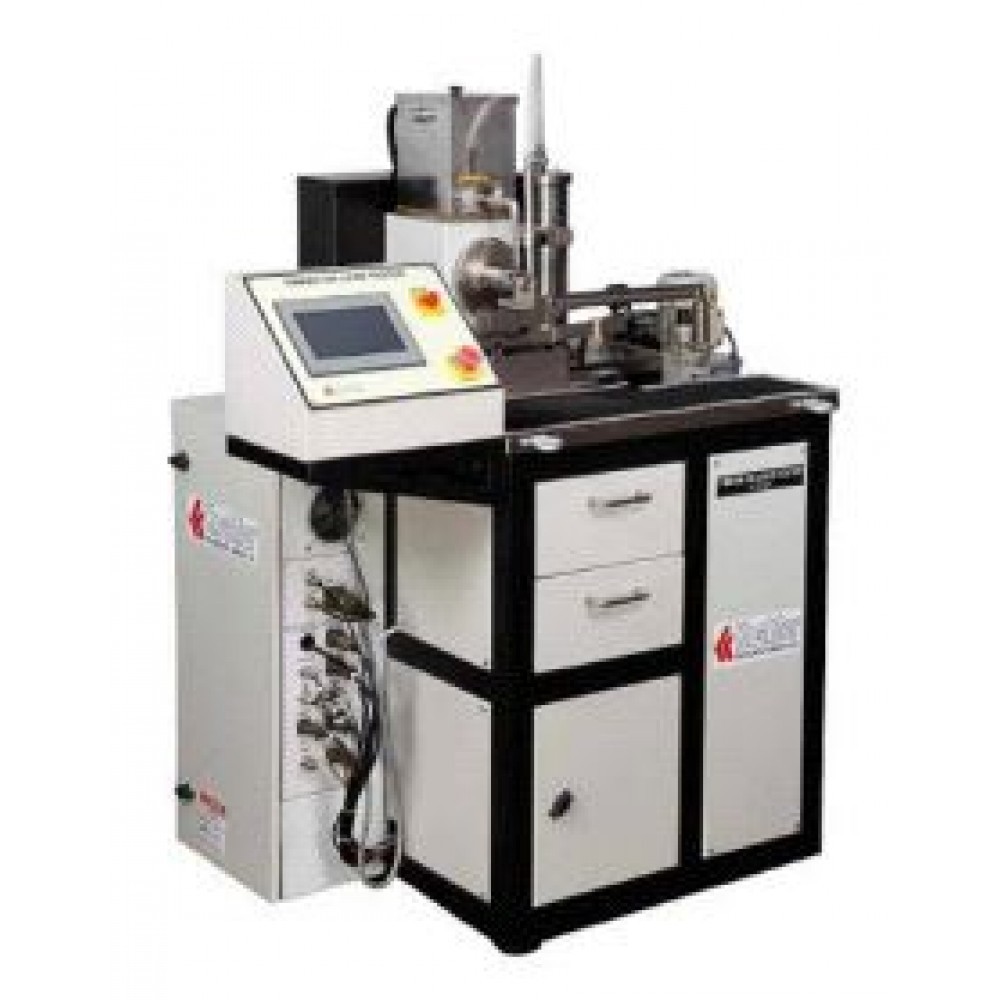

Analizor Timken

Compliant to ASTM D2509 and D2782

Fluid recirculation system

Automatic grease feeder

Friction lever and weights

1:10 Loading lever with load cell and digital indicator

Oil reservoir with heating system

Producător: Koehler

Model: K92000

Cod: fc45c296adc6

Preţ, fără TVA: La cerere


Telefon: 0744.594.794 / 0251.417.664


The Koehler K920X5 Timken test rig is used to measure the extreme pressure properties of lubricating grease and lubricating fluids. The Timken test rig is operated with a steel cup rotating at 800 rpm pressed against a steel test block. The sample under test is carried by the cup into sliding contact. The test load at the contact is progressively increased and score value and OK load value are determined.


Conforms to the specifications of:

ASTM D2509, D2782

Test Rig Outer Diameter:

49.22 mm

Test Block:

12.32 x 12.32 x 19.1 mm

Rotational Speed:

100 to 800 RPM

Rate of Loading:

0.9 to 1.3 kg/sec

Dead Weights:

52 kg

Auto Fluid Recirculation Feeder:

3L capacity

Auto Grease Feeder:

45 ± 10 g/min

Preset Timer:


Preset Temperature Controller:

up to 100°C

Loading Arm:

1:10 Ratio




Digital Camera with Microscope and Manually Controlled Stage and Image Capturing Data Acquisition System


La cerere

Acoustic Sensor


La cerere

Vibration Sensor


La cerere

ASTM D2509, D2782
